RSS 3 Rubber Production Process: From Latex to Smoked Sheets

The RSS 3 rubber production process starts with fresh natural rubber latex and follows a clear sequence: straining, DRC adjustment, coagulation, milling and ribbing, washing, smoking, visual grading and baling.

RSS1 follows essentially the same process. The final grade depends mainly on processing quality, cleanliness and the visual condition of the finished sheets.

RSS 3 Rubber Production Process at a Glance

Fresh Latex → Straining → DRC Adjustment → Coagulation → Milling & Ribbing → Washing & Dripping → Smoking → Visual Grading → Baling

Step	Main Purpose
Straining	Remove dirt, bark and foreign matter
DRC adjustment	Improve processing consistency
Coagulation	Convert liquid latex into coagulum
Milling & ribbing	Form uniform ribbed sheets
Washing & dripping	Remove residues and surface water
Smoking	Dry and preserve the sheets
Visual grading	Determine the final RSS grade
Baling	Prepare rubber for storage and shipment

Step-by-Step RSS Rubber Manufacturing Process

1. Latex Collection and Straining

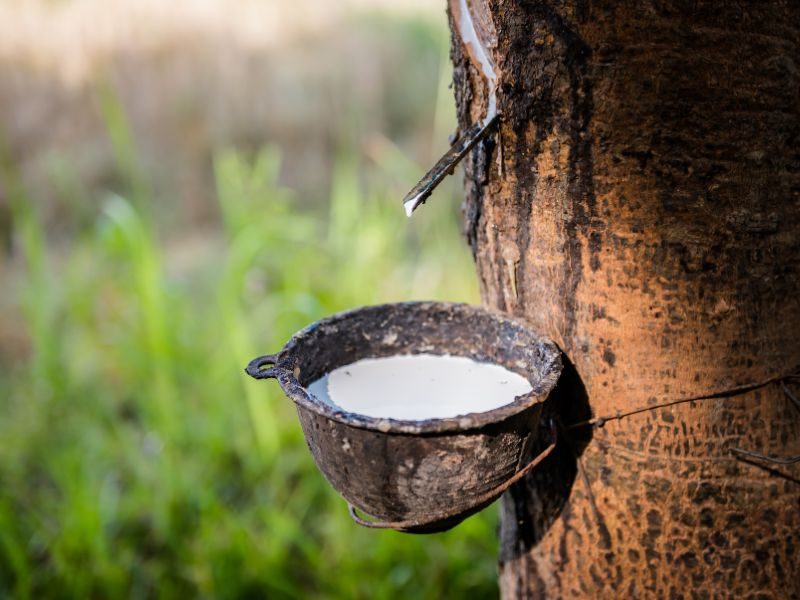

RSS production begins with fresh field latex collected from rubber trees.

The latex is filtered to remove:

• bark particles;
• leaves;
• sand;
• insects;
• other foreign materials.

From our experience, quality control starts at this stage. Contamination in the fresh latex can remain visible in the finished sheet and affect its final grade.

2. DRC Adjustment

The Dry Rubber Content (DRC) of fresh latex can vary between batches.

Before coagulation, clean water may be added to adjust the latex to a suitable processing level.

The objective is to support:

• uniform coagulation;
• consistent sheet formation;
• stable downstream processing.

The exact target depends on the condition of the latex and the factory’s process control.

3. Coagulation

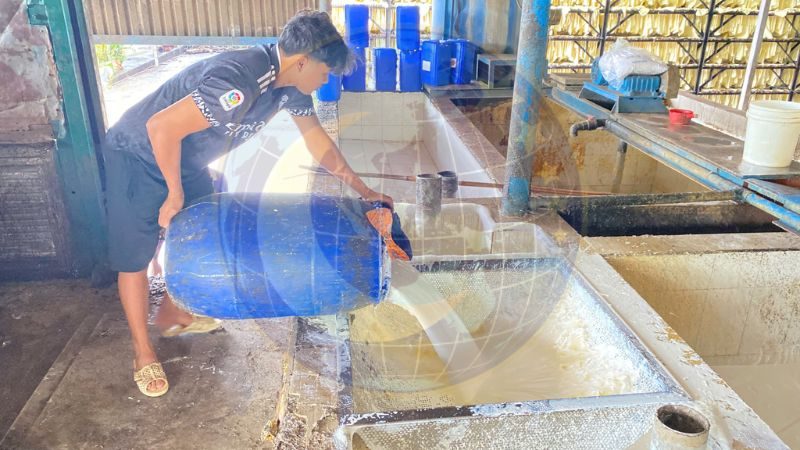

The prepared latex is transferred into coagulation tanks or pans.

A diluted coagulant, commonly formic acid, is added to convert the liquid latex into a solid rubber mass called coagulum.

Good coagulation should produce a clean and uniform mass with minimal trapped air and contamination.

Important controls include:

• correct coagulant preparation;
• even mixing;
• clean equipment;
• sufficient coagulation time.

4. Milling and Ribbing

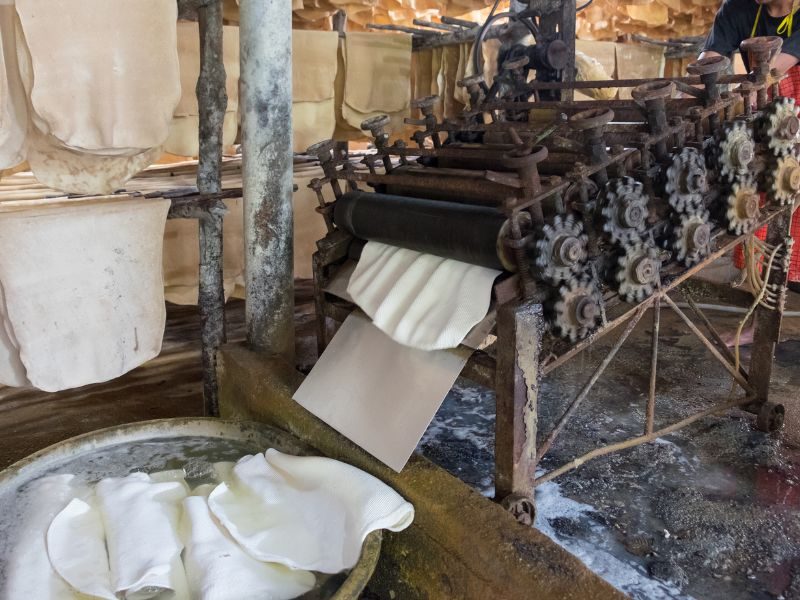

The coagulum is passed through a series of rollers.

Smooth rollers progressively:

1. remove serum and water;
2. reduce sheet thickness;
3. form a more uniform rubber sheet.

The final ribbed roller creates the characteristic surface pattern of Ribbed Smoked Sheet rubber.

Uniform sheet thickness is important because it supports more consistent drying during smoking.

5. Washing and Dripping

After rolling, the sheets are washed with clean water to remove residual serum and processing residues.

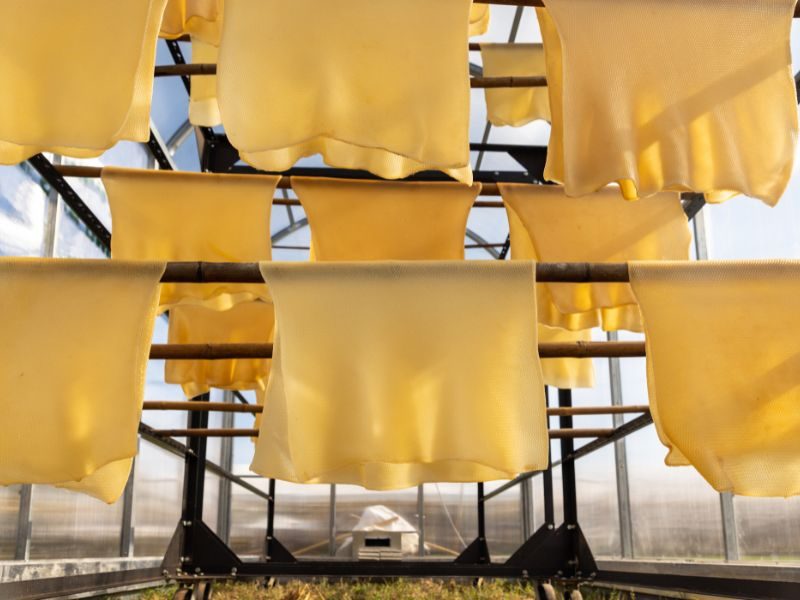

They are then hung on racks or poles to drain excess surface water before entering the smokehouse.

This helps the sheets dry more evenly during the next stage.

6. Smoking and Drying

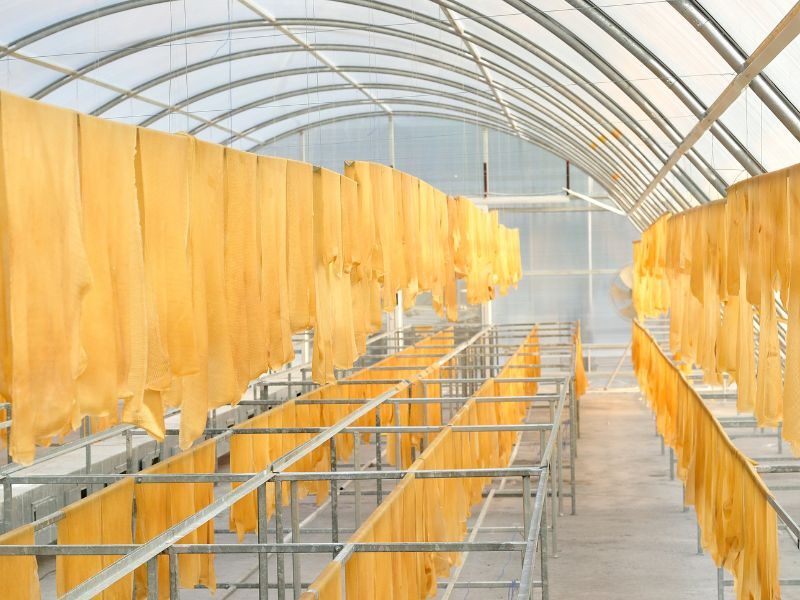

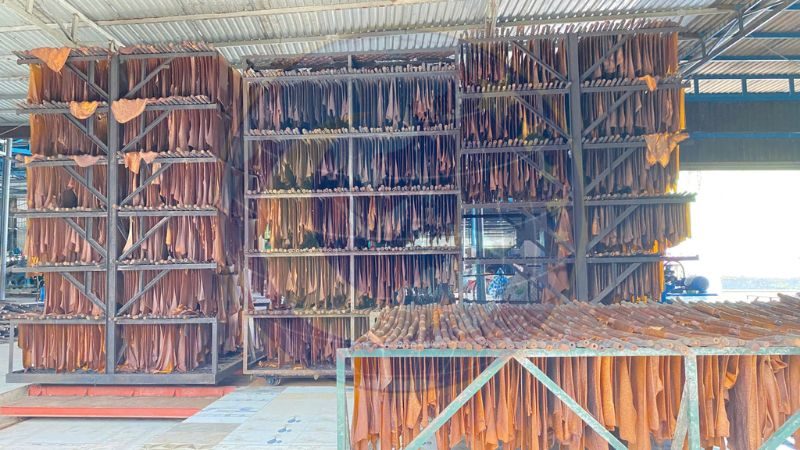

The sheets are transferred to a smokehouse, where controlled heat, smoke and airflow gradually remove moisture.

Smoking helps:

• dry the rubber;
• reduce mould risk;
• preserve the sheets;
• develop the typical appearance of RSS.

In conventional RSS production, smoking usually takes several days, often around 4–5 days, depending on:

• sheet thickness;
• airflow;
• humidity;
• smokehouse design;
• operating conditions.

The key is uniform drying. Sheets should not remain under-cured, but they should also not be overheated or burnt.

7. Visual Grading

After smoking and drying, the finished sheets are visually inspected and sorted.

This is where the final RSS grade is primarily determined.

Inspectors typically check:

• dryness;
• cleanliness;
• colour;
• bubbles;
• bark specks;
• mould;
• stains;
• under-cured areas;
• burnt or overheated areas;
• foreign matter.

RSS1 requires stricter visual quality, while RSS3 allows a limited level of minor visual defects.

For a detailed comparison of quality, allowable defects and applications, see our RSS 1 vs RSS 3 Comparison.

Technical Note: RSS1 and RSS3 are primarily classified by visual quality. Laboratory parameters such as Dirt, Ash, PRI or Mooney viscosity may be provided as additional quality information, but they do not directly determine the RSS visual grade.

8. Baling and Packing

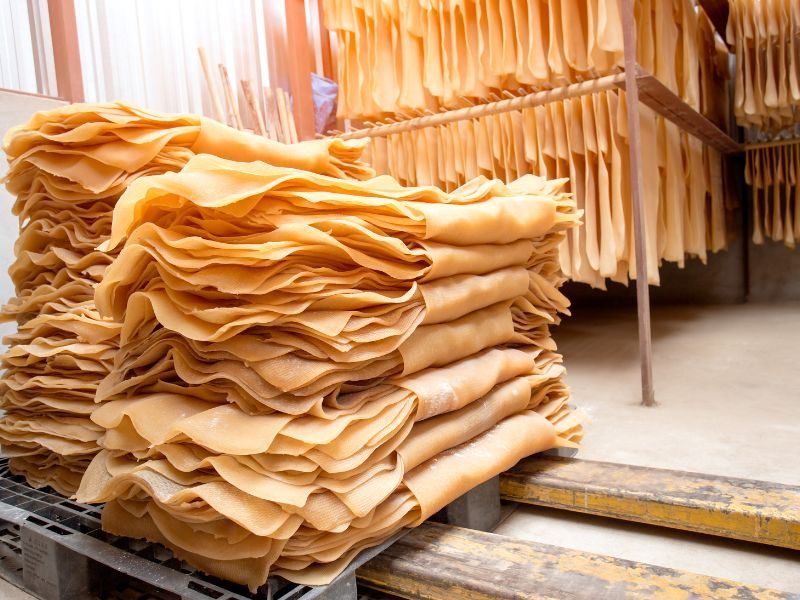

After grading, sheets of the same grade are grouped and compressed into bales.

Commercial bale sizes vary according to market and buyer requirements.

Common formats include:

• 33.33 kg bales
• 35 kg bales

Other packing configurations may also be arranged depending on shipment requirements.

For export orders, packing should be confirmed between supplier and buyer before order execution.

Does RSS1 Use the Same Production Process as RSS3?

Yes. RSS1 and RSS3 essentially follow the same Ribbed Smoked Sheet production process.

Both pass through:

latex preparation → coagulation → milling → washing → smoking → grading

The difference is mainly the quality achieved throughout production and the visual grade assigned to the finished sheets.

RSS1 requires tighter visual quality control, while RSS3 permits a limited level of minor defects.

For detailed grade differences, see our RSS 1 vs RSS 3 Comparison.

In practice, consistent RSS quality depends on controlling cleanliness, coagulation, sheet formation, washing and smoking throughout the process—not only at the final grading stage.

Frequently Asked Questions

How is RSS3 rubber produced?

RSS3 is produced from fresh natural rubber latex through straining, DRC adjustment, coagulation, milling and ribbing, washing, smoking, visual grading and baling.

What acid is used in RSS production?

Formic acid is commonly used as a coagulant in RSS production. The exact preparation and dosage depend on latex condition and factory processing practice.

How long does RSS smoking take?

Conventional RSS smoking commonly takes several days, often around 4–5 days. The actual duration depends on sheet thickness, humidity, airflow and smokehouse conditions.

Is RSS1 produced differently from RSS3?

Not fundamentally. RSS1 and RSS3 follow essentially the same production flow. The final difference mainly comes from process quality and the visual grade achieved after smoking and drying.

Conclusion

At Ngoc Chau, we see RSS quality as the result of consistent control from fresh latex preparation through coagulation, milling, smoking and final grading.

RSS1 and RSS3 share the same basic production flow, while the final grade reflects the quality achieved throughout the process.
